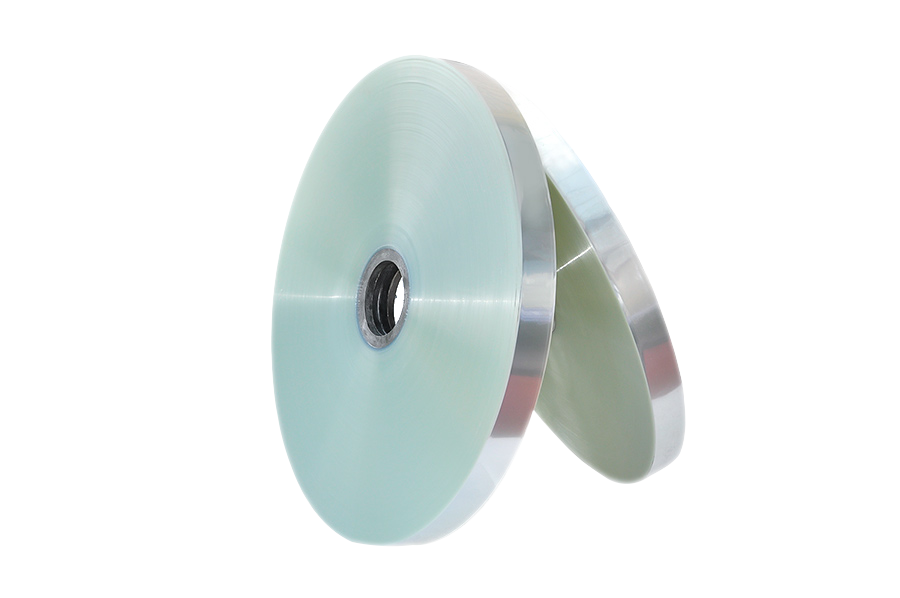

pet mylar film 50 micron tape for communication cable

pet mylar film 50 micron tape for communication cable

Structure :Polyester film(PET)
Colour :Transparent ,blue,red ,black and so on.

Place of Origin:Zhejiang, China
Usage:flexible duct & cable etc.
Main Products:AL/PET foil, PET film, Meatallized film ,PVC film
Exhibition:Home and abroad
Type:polyester film
Feature:signal in cable & waterproof in flexible duct
Processing Type:Blow Molding
Model Number:DX201017-22

pet mylar film 50 micron tape for communication cable detail

Structure :Polyester film(PET)



Structure

Thickness(micron)

Weight(g/m2)

Yield(m2/kg)

PET

12

16.8

59.5

PET

15

21.0

47.6

PET

20

28.0

35.7

PET

25

35.0

28.5

PET

50

70.0

14.3

PET

75

105.0

9.5

PET

100

140.0

7.1





Packing solution



Type

ID

OD

Width

Core Material

PAD

53mm(2") 76mm(3")

Max. 650mm

5mm-1300mm

Paper core& plastic core

Spool

76mm(3")

Max. 500mm

Max. 400mm

Paper



Storage:In room temperature . Keep dry away from light direct irradiation,pollution and all kinds of mechanical outside force.
Remark:Above data property mentioned only be as a general guide.It is subjected to actual testing.



PET polyester film is a normal used insulating layer material for cables. It is mainly used to protect the insulating layer of cables and improve the wear resistance, weather resistance and chemical corrosion resistance of cables. Generally speaking, the following types of cables need PET polyester film tape:
High temperature cable: PET mylar polyester film tape can improve the high temperature resistance of the cable, suitable for high temperature occasions of the cable.
Power cable: PET film mylar polyester tape can improve the insulation performance of the cable and protect the internal structure of the cable from external damage.
Communication cable:PET mylar polyester film tape can improve the anti-interference performance of the cable, reduce the influence of electromagnetic wave and ensure the stability of communication.
Control cable: PET mylar polyester film tape can improve the wear resistance of the cable, suitable for the mechanical control system often need to move the cable.
In general, the cable that needs to use PET mylar polyester film tape mostly needs to take into account the protection, insulation, heat resistance, wear resistance, chemical corrosion resistance and so on.
The thickness of PET mylar polyester film tape can be adjusted according to different requirements in cable manufacturing. Generally speaking, the cable manufacturer will determine the thickness of the PET film to be used according to the specific purpose of the cable. Some common PET film thickness include: 0.012mm,0.015mm,0.02mm, 0.023mm, 0.050mm and so on.
Normally, the thickness of PET film will be affected by the size of the cable, voltage and other factors. For example, for high-voltage cables, thicker PET films mylar tapes are needed to enhance the insulation and ensure the safety of the cable. In addition, different cable materials will also affect the thickness of PET film selection. Therefore, the specific PET film thickness needs to be determined according to the actual situation.
PET film is a common polyester mylar film, it has good transparency, toughness, tensile strength and wear resistance and other characteristics. As a result, PET membranes have a wide range of applications in many fields, including:
Cable insulation
